General Purpose Resistance Temperature Detectors

General Purpose Resistance Temperature Detectors (PT-100 Sensors)

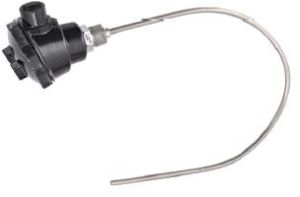

MINERAL INSULATED HEAD TYPE & TRANSITION JOINT PT-100 SENSORS

Magnisium Oxide  lled & sealed sensors with total protection from moisture, vibrating

and shock. These sensors are used to measure low temperature of -200° C to 200° C.

Special Te on coated sensors are used to measure temperature of acidic / corrosive

items up to 200° C.

• Type of Sensor : R.T.D. Sensor (PT-100)
• Din Standard : Din 43760
• Sheath Material : SS 304, SS 316, Te on Coated
• Sheath O.D. : 6mm, 8mm, 10mm
• Sensor Length : 6”, 12”, 18”, 24”, Other lengths available on request
• Process Connection : Standard 1/2” BSP  xed. Also 1/4”, 1/2”, 3/4”  xed andadjustable adaptors in BSP & NPT are available
• Construction of the Sensor : Simplex and Duplex with aluminium die cast head, Bakelitehead or CMRI certi ed  ameproof head.
